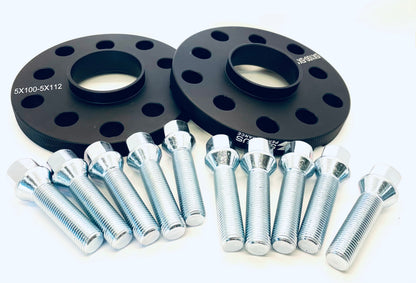

57.1 - 5x100/5x112 Hub Centric Wheel Spacers (VW / Audi)

57.1 - 5x100/5x112 Hub Centric Wheel Spacers (VW / Audi)

Bolt Pattern5x100 / 5x112Hub Bore57.1mm
Regular price $65.00 USD
Regular price Sale price $65.00 USD
Sale Sold out
Shipping calculated at checkout.
Spacer Thickness
Flat · Slides over your factory hub lip
Hub Centric · Has its own lip for the wheel to centre on
Quantity
Included Wheel Bolts
Select the thread pitch matching your vehicle.
Your Selection
5mm (FLAT)
2 Spacers (1 pair)
Includes
$65.00 USD
per pair
✔ Free Shipping
Verify your setup before ordering.

Ships from Calgary, AB. Free shipping available across Canada on qualifying orders. Import fees and duties apply to orders shipping to the United States.

Need help with fitment? Contact us before ordering, or see our FAQs and installation instructions.

View full details

Fits both 5x100 and 5x112 in a single spacer. This dual-pattern hub-centric spacer covers the 57.1mm hub bore shared across Volkswagen and Audi platforms using either a 5x100 or 5x112 bolt pattern.

Specifications

  • Bolt Pattern: 5x100 / 5x112 (dual pattern)
  • Hub Bore: 57.1mm
  • Thickness: 5mm, 8mm, 10mm Flat, 10mm Hub Centric, 12.5mm, 15mm, 18mm, 20mm
  • Thread Pitch: 14x1.5 — Ball Seat Extended Wheel Bolts Included
  • Material: Billet Aluminum T6061, Grade 10.9 Steel Hardware as standard (see bolt chart)
  • Type:

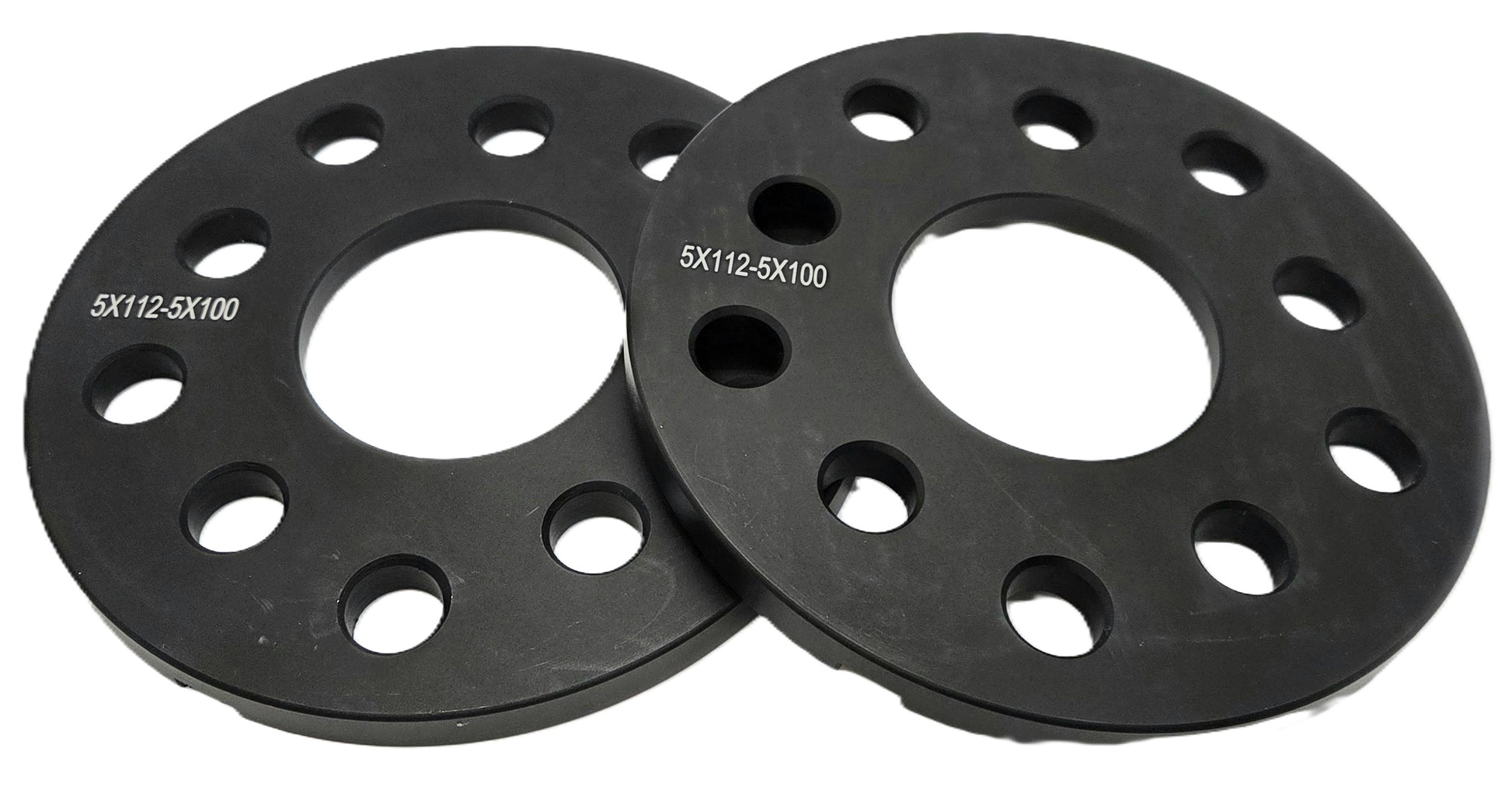

    • SPS Series, Slip On, Flat (no lip) (5mm, 8mm, 10mm)

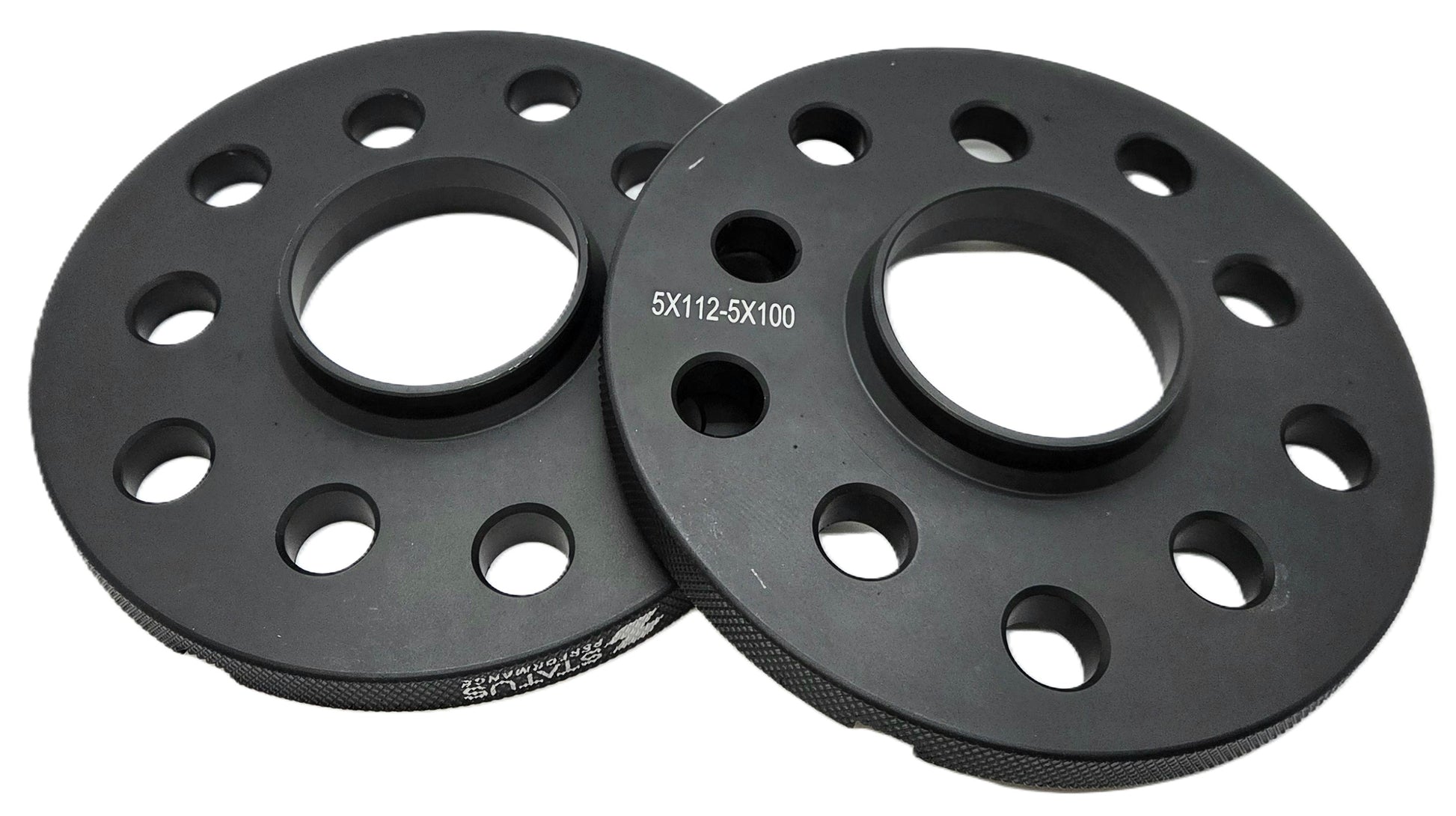

    • SPS Series, Slip On, Hub Centric: (10mm - 20mm)

Fitment

Volkswagen Golf (Mk4/Mk5/Mk6), Golf R, GTI, Jetta, Passat, Tiguan — Audi A3, TT (8N/8J) and other VW / Audi platforms with a 5x100 or 5x112 bolt pattern and 57.1mm center bore.

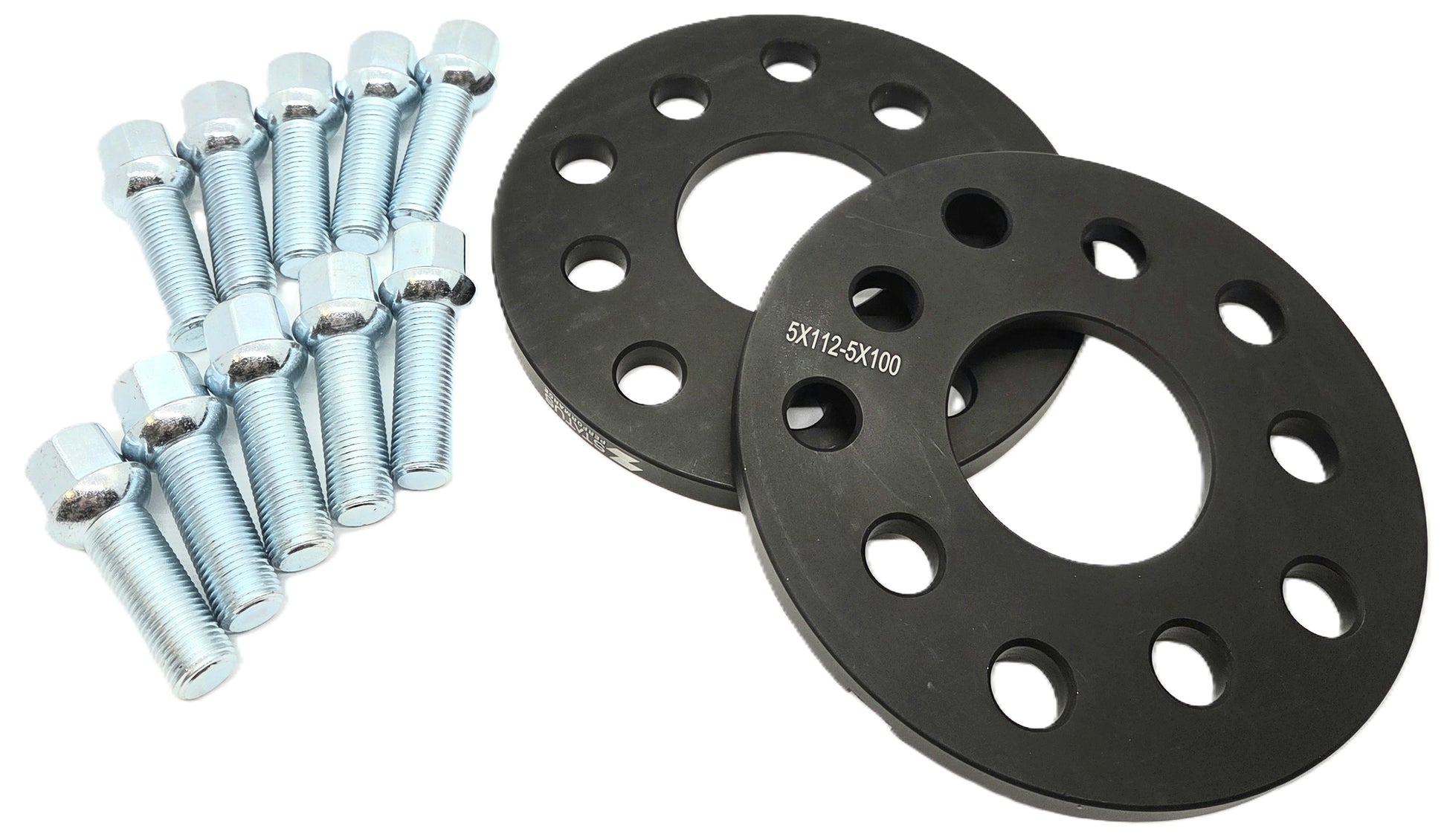

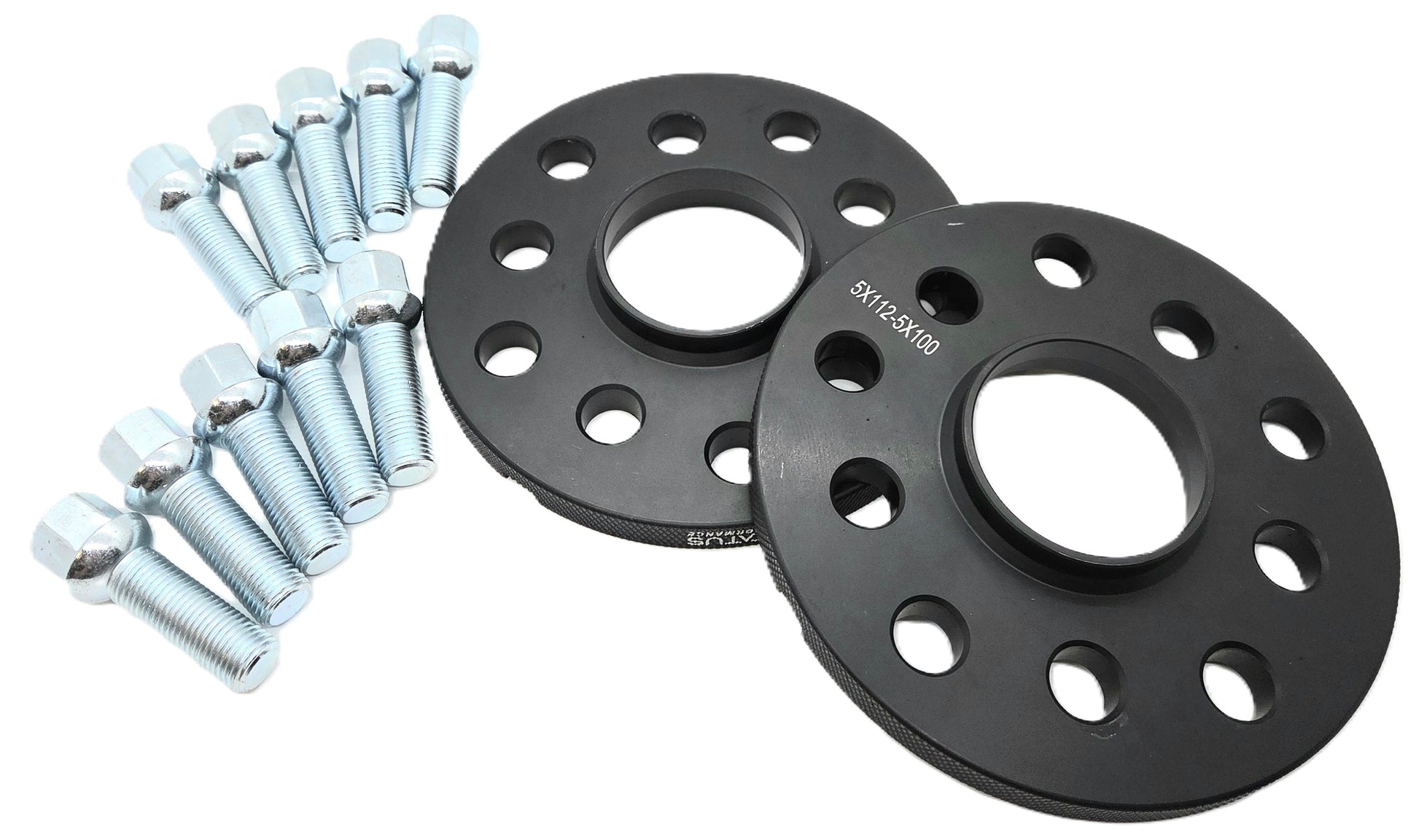

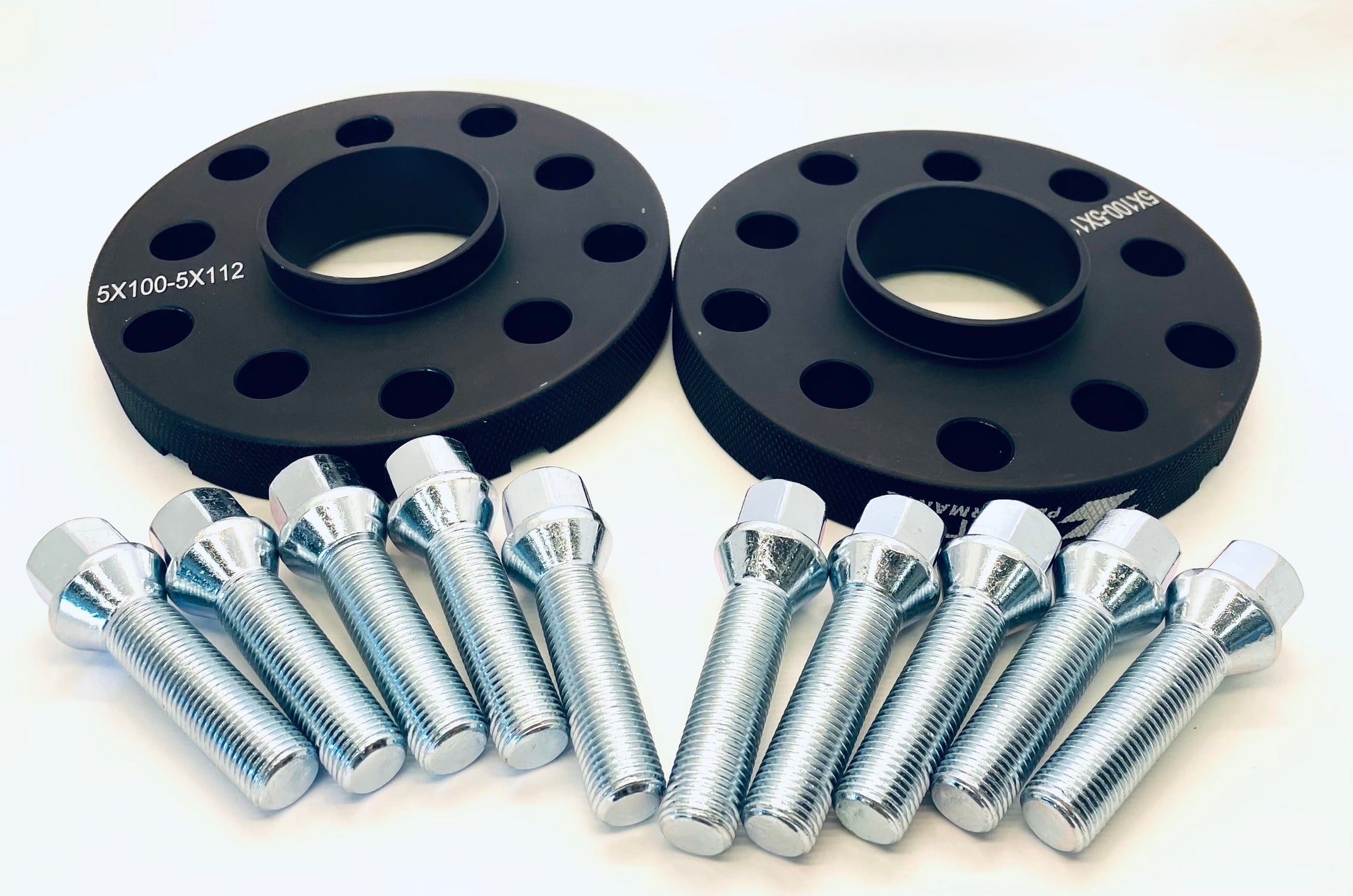

Kit Includes

  • (2) Wheel Spacers
  • (10) 14x1.5 Ball Seat Extended Wheel Bolts — correct length for selected size

Included wheel bolts by spacer size

Spacer Bolt Length Grade / Finish
5mm 32mm 12.9 Black
8mm 35mm 10.9 Chrome
10mm Flat or Hub Centric 40mm 10.9 Chrome
12.5mm 40mm 10.9 Chrome
15mm 40mm 10.9 Chrome
18mm 45mm 10.9 Chrome
20mm 45mm 10.9 Chrome

Grade 12.9 Black bolts are available as a paid upgrade on 8–20mm.

Hub Lip Guide

  • 5mm, 8mm and 10mm Flat: These have no recess and slide over your factory hub lip. The 10mm Flat is not fully hub centric.
  • 10mm Hub Centric, check your wheels before ordering: This spacer has a 5mm x 5mm chamfer at the base of its hub lip, where the wheel sits. Your wheel needs at least a 5mm chamfer around the back of its center bore to sit flush. Not all wheels have this.
  • 12.5mm Hub Centric: This spacer has a smaller 3mm chamfer, which suits most factory and aftermarket wheels.

Every spacer must sit flush against the hub. If one doesn't, do not install it.

Fitment, installation and road use

Confirm compatibility with your vehicle, wheels and hardware before installation. Vehicle fitment results do not establish clearance for every wheel setup or confirm road-use legality.

Incorrect fitment, installation or maintenance can cause wheel separation, loss of control, serious injury or death. Follow the applicable installation and inspection instructions. Professional installation is recommended.

Road-use and inspection requirements vary by jurisdiction. Confirm local requirements before purchasing.
