72.56 - 5x120 Hub Centric Wheel Spacers (BMW)

72.56 - 5x120 Hub Centric Wheel Spacers (BMW)

Bolt Pattern5x120Hub Bore72.56mm
Regular price $90.48 CAD
Regular price Sale price $90.48 CAD
Sale Sold out
Shipping calculated at checkout.
Spacer Thickness
Flat · Slides over your factory hub lip
Hub Centric · Has its own lip for the wheel to centre on
Bolt-On · Bolts to your hub, included bolts mount the wheel
Quantity
Included Wheel Bolts
Select the thread pitch matching your vehicle.
Your Selection
5mm (FLAT)
2 Spacers (1 pair)
Includes
$90.48 CAD
per pair
✔ Free Shipping
Verify your setup before ordering.

Ships from Calgary, AB. Free shipping available across Canada on qualifying orders. Import fees and duties apply to orders shipping to the United States.

Need help with fitment? Contact us before ordering, or see our FAQs and installation instructions.

View full details

Precision-engineered for BMW 5x120 platforms. These hub-centric spacers are designed and engineered by Status Performance Calgary, specifically for BMW models with a 5x120 bolt pattern and 72.56mm hub bore. Available in 5mm through 25mm, with the correct hardware for each size: conical seat extended wheel bolts matched to your spacer thickness up to 20mm, and mounting bolts with the 25mm. Local pickup available in Calgary, AB & shipping options available throughout Canada and USA.

Specifications

  • Bolt Pattern: 5x120
  • Hub Bore: 72.56mm
  • Thickness: 5mm, 8mm, 10mm Flat, 10mm Hub Centric, 12.5mm, 15mm, 18mm, 20mm, 25mm
  • Thread Pitch: 14x1.25 or 12x1.5 — Conical Seat Extended Wheel Bolts Included
  • Material: Billet Aluminum 6061-T6, Grade 10.9 Steel Hardware as standard (see bolt chart)
  • Type:

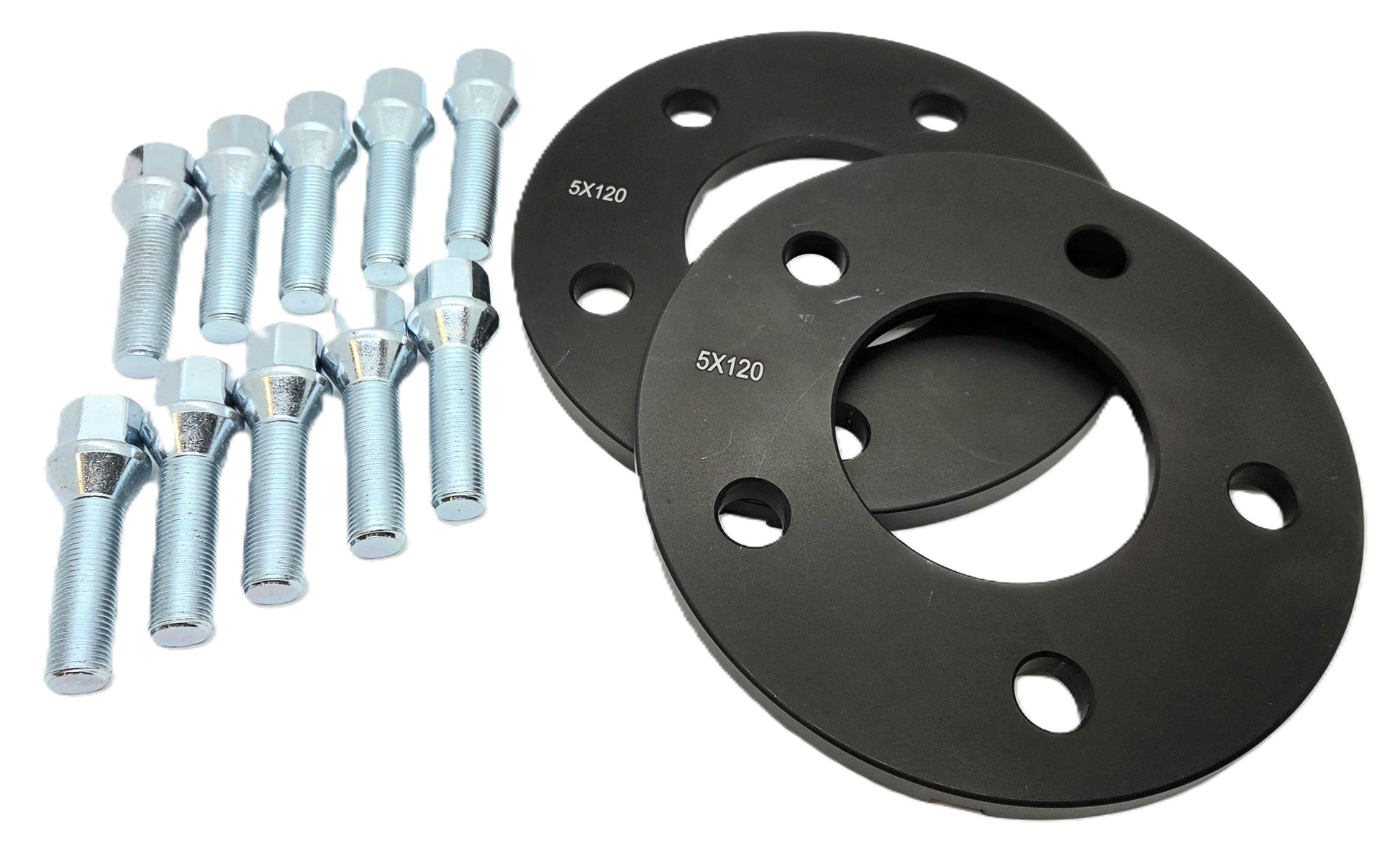

    • SPS Series, Slip On, Flat (no lip) (5mm, 8mm, 10mm)
    • SPS Series, Slip On, Hub Centric: (10mm - 20mm)

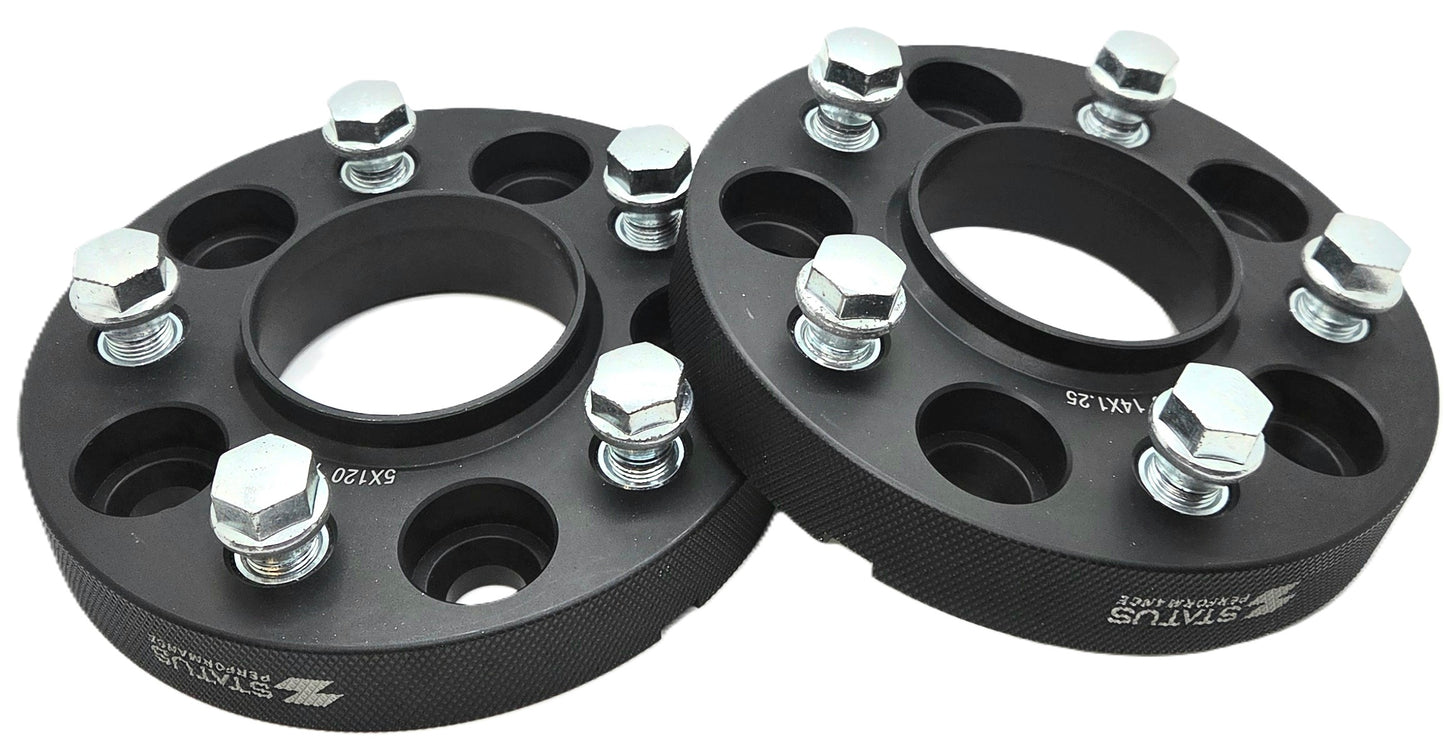

    • SPA Series, Bolt On: (25mm)

Fitment

BMW 1 Series, 2 Series, 3 Series, 4 Series, 5 Series, 6 Series, X3, X4 and other BMW platforms with a 5x120 bolt pattern and 72.56mm center bore. Verify your vehicle to confirm thread pitch and bolts included — late-model BMW uses 14x1.25; earlier models may use 12x1.5.

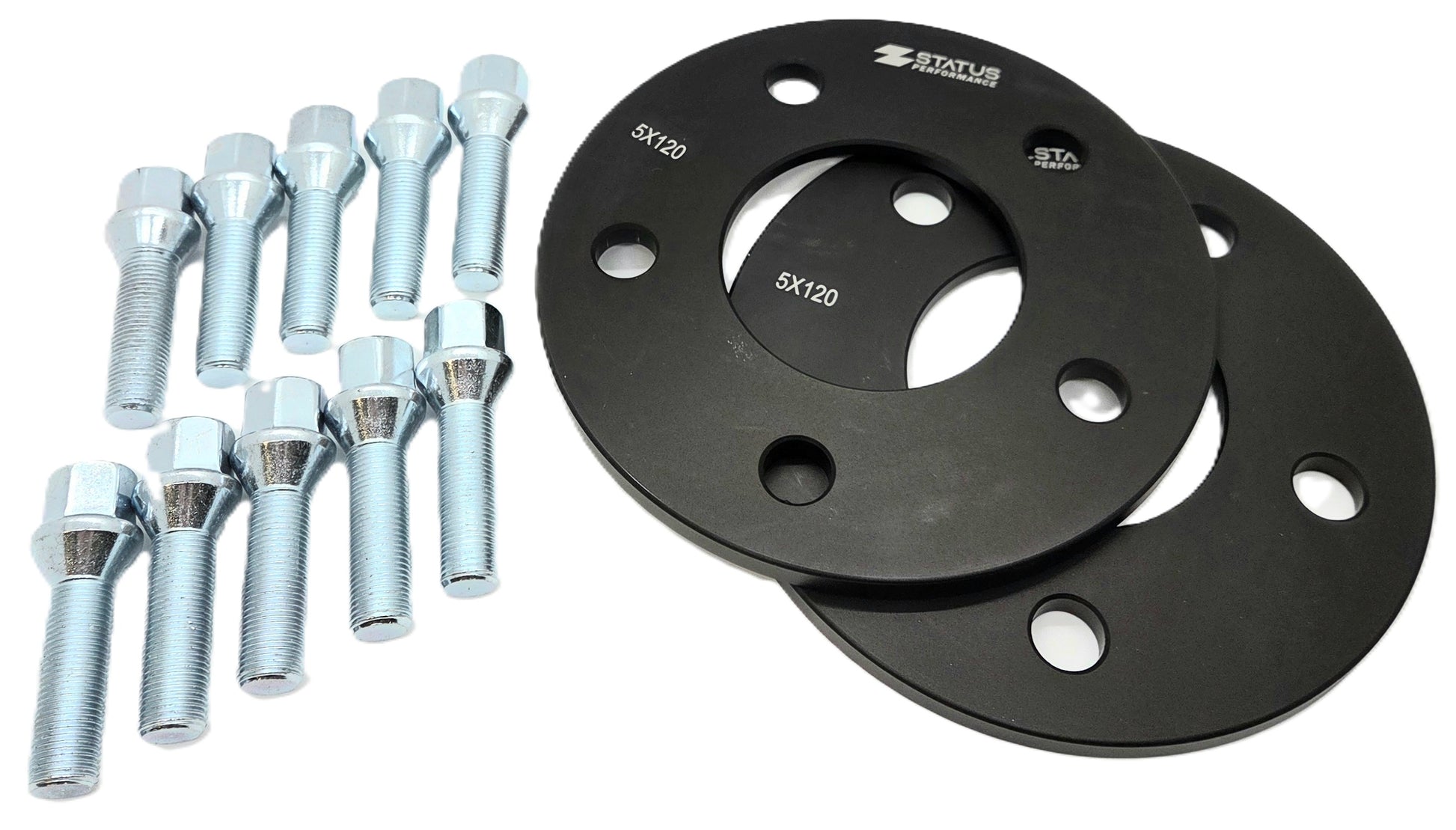

Pair Includes

  • (2) Wheel Spacers
  • (10) Extended Wheel Bolts — correct length for selected size
  • 25mm kit: (2) Wheel Spacers and (10) 14x1.25 Mounting Bolts

Included wheel bolts by spacer size

Spacer Bolt Length Grade / Finish
5mm 32mm 12.9 Black
8mm 35mm 10.9 Chrome
10mm Flat or Hub Centric 40mm 10.9 Chrome
12.5mm 40mm 10.9 Chrome
15mm 40mm 10.9 Chrome
18mm 45mm 10.9 Chrome
20mm 45mm 10.9 Chrome
25mm Bolt-on, (10) 14x1.25 mounting bolts

Grade 12.9 Black bolts are available as a paid upgrade on 8–20mm with 14x1.25 threads. 12x1.5 bolts are Grade 10.9 Chrome only. For 5mm on 12x1.5, please contact us before ordering.

Hub Lip Guide

Your vehicle's factory hub lip has to fit inside a Hub Centric spacer so the spacer can sit flush against the hub. BMW hub lips range from 10mm to 13mm and can vary by model and axle, so measure the front and rear from the hub face to the end of the lip.

The 10mm Hub Centric needs a hub lip of 10.25mm or less, which is best measured with calipers. If you can't measure that accurately, choose the 12.5mm Hub Centric or the 10mm Flat.

How to measure a vehicle hub lip before ordering a 10mm Hub Centric spacer

Your hub lip 10mm Flat 10mm Hub Centric 12.5mm Hub Centric
10.25mm or less Fits, with little or no factory lip left showing Fits, fully hub centric Fits, fully hub centric
Over 10.25mm, up to 13mm Fits, with up to 3mm of factory lip left showing. Not fully hub centric Will not sit flush without modifying the hub Fits, fully hub centric
Over 13mm Fits Will not sit flush without modifying the hub Please contact us

If your hub lip is over 10.25mm, we recommend the 12.5mm Hub Centric, or the 10mm Flat if you need a 10mm spacer.

Modifying the hub: The 10mm Hub Centric can only be used on a taller hub lip if the lip is ground or filed down until the spacer sits flush against the hub. This permanently modifies a factory part and is done at your own risk, so we only suggest it if absolutely necessary.

Fitment, installation and road use

Confirm compatibility with your vehicle, wheels and hardware before installation. Vehicle fitment results do not establish clearance for every wheel setup or confirm road-use legality.

Incorrect fitment, installation or maintenance can cause wheel separation, loss of control, serious injury or death. Follow the applicable installation and inspection instructions. Professional installation is recommended.

Road-use and inspection requirements vary by jurisdiction. Confirm local requirements before purchasing.
