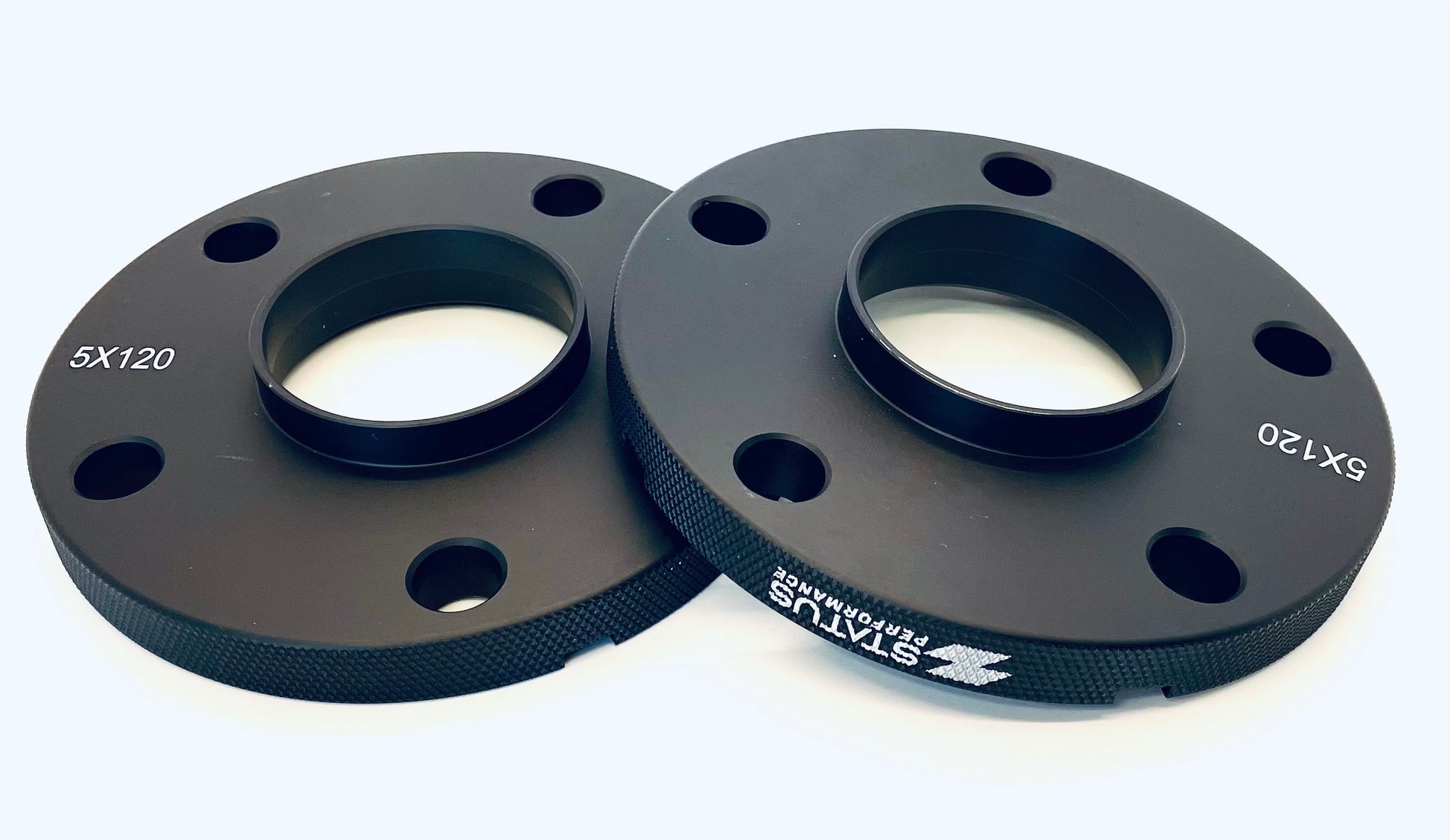

74.1 - 5x120 Hub Centric Wheel Spacers (BMW)

74.1 - 5x120 Hub Centric Wheel Spacers (BMW)

Bolt Pattern5x120Hub Bore74.1mm
Regular price $109.52 CAD
Regular price Sale price $109.52 CAD
Sale Sold out
Shipping calculated at checkout.
Spacer Thickness
Quantity
Included Wheel Bolts
Select the thread pitch matching your vehicle.
Your Selection
12.5mm
2 Spacers (1 pair)
Includes
$109.52 CAD
per pair
✔ Free Shipping
Verify your setup before ordering.

Ships from Calgary, AB. Free shipping available across Canada on qualifying orders. Import fees and duties apply to orders shipping to the United States.

Need help with fitment? Contact us before ordering, or see our FAQs and installation instructions.

View full details

Designed for the larger BMW hub bore. Several BMW X5, X6 and E39 5 Series models use a 74.1mm hub bore with a 5x120 bolt pattern. Extended conical seat wheel bolts are included — matched in length to your spacer size.

Specifications

  • Bolt Pattern: 5x120
  • Hub Bore: 74.1mm
  • Thickness: 12.5mm, 15mm, 20mm
  • Thread Pitch: 14x1.25 and 12x1.5 — Conical Seat Extended Wheel Bolts Included
  • Material: Billet Aluminum T6061, Grade 10.9 Steel Hardware as standard (see bolt chart)
  • Type: Slip-On Hub Centric

Fitment

BMW X5 E70 (2007–2013), F15 (2014–2018) — BMW X6 E71 (2008–2014), F16 (2015–2019) — BMW X5 M, X6 M — BMW 5 Series E39 (1996–2003) and other BMW platforms with a 5x120 bolt pattern and 74.1mm center bore.

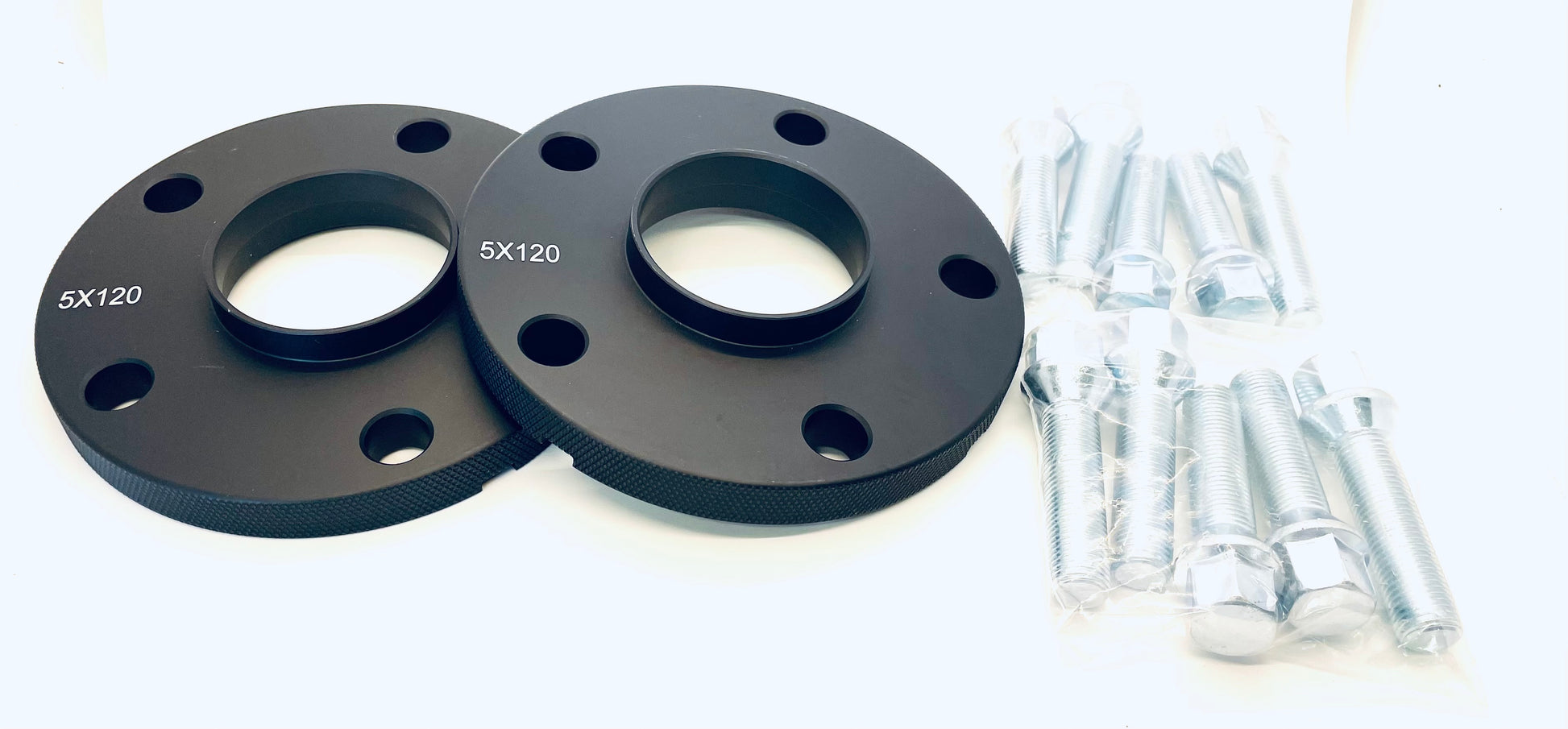

Kit Includes

  • (2) Hub Centric Wheel Spacers
  • (10) Extended Wheel Bolts — seat type and length matched to your vehicle and spacer size

Included wheel bolts by spacer size

Spacer Bolt Length Grade / Finish
12.5mm 40mm 10.9 Chrome
15mm 40mm 10.9 Chrome
20mm 45mm 10.9 Chrome

Grade 12.9 Black bolts are available as a paid upgrade with 14x1.25 threads. 12x1.5 bolts are Grade 10.9 Chrome only.

Fitment, installation and road use

Confirm compatibility with your vehicle, wheels and hardware before installation. Vehicle fitment results do not establish clearance for every wheel setup or confirm road-use legality.

Incorrect fitment, installation or maintenance can cause wheel separation, loss of control, serious injury or death. Follow the applicable installation and inspection instructions. Professional installation is recommended.

Road-use and inspection requirements vary by jurisdiction. Confirm local requirements before purchasing.

Designed for the larger BMW hub bore. Several BMW X5, X6 and E39 5 Series models use a 74.1mm hub bore with a 5x120 bolt pattern. Extended conical seat wheel bolts are included — matched in length to your spacer size.

Specifications

  • Bolt Pattern 5x120
  • Hub Bore 74.1mm
  • Thickness 12.5mm, 15mm, 20mm
  • Thread Pitch 14x1.25 and 12x1.5 — Conical Seat Extended Wheel Bolts Included
  • Material Billet Aluminum T6061, Grade 10.9 Steel Hardware as standard (see bolt chart)
  • Type Slip-On Hub Centric
